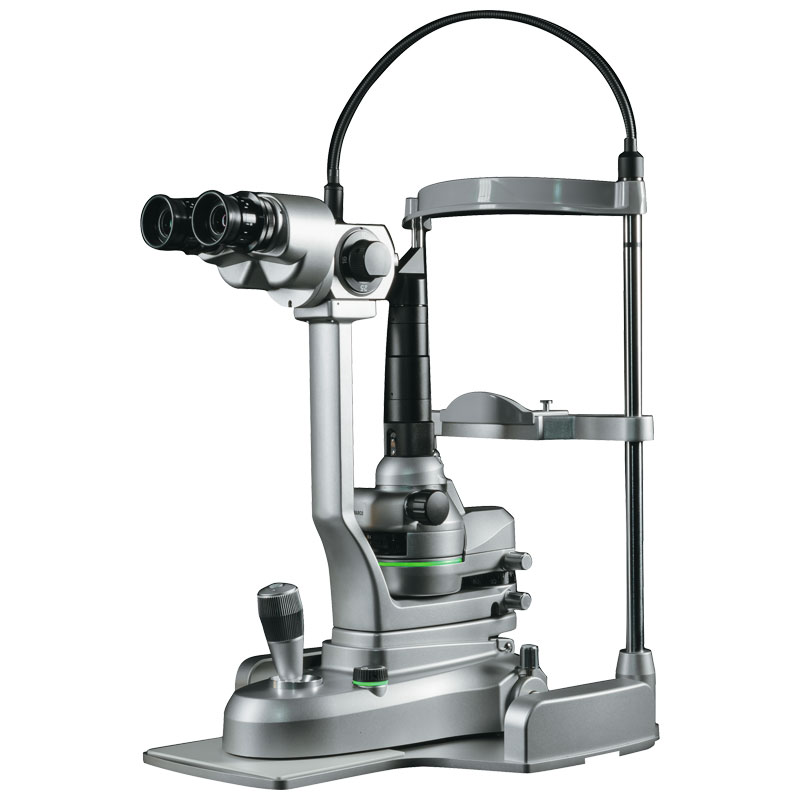

Marco M2 Ultra Slitlamp
The Marco Ultra M2 slit lamp was designed with functionality, comfort, and durability in mind. The sophisticated, cable-free design features Galilean/parallel optics and 3-step magnification (10x, 16x, 25x). Additionally, an extended aperture diameter allows for a wider field of view.
Single-element LED illumination provides unbeatable clarity, and the fully-integrated background illumination makes the Ultra M2 an affordable option for slit lamp imaging.
FEATURES
- 3-power parallel/galilean optics (10x, 16x, 25x)
- Blue, red-free, and blue LED correction light filters
- Single-element, high-luminance LED illumination
- Integrated background illumination
- Cable-free design
SPECIFICATIONS
| Type Binocular Stereomicroscope | Parallel (Galilean) |
|---|---|
| Light Source | LED |
| Light Source Configuration | Compact/Horizontal |
| Background Illumination | Yes |
| Light Filters | Blue, Red-free, Blue LED Correction |
| Slit Width | 0-14mm continuous variable |
| Aperture Diaphragm Diameter | (Ø) 14, 8, 5, 3, 0.3mm |
| Total # Power Magnifications | 3 (10x, 16x, 25x) |
| Magnification Change | 3 Position Rotating Drum |
| Eye Pieces | 16x wide-field, high-eyepoint |
| Real Field of View | (Ø) 23.3mm, 14mm, 8.8mm |
| Interpupillary Adjustment | 52-82mm |
| Diopter Adjustment Range | (+/-) 7 Diopters |
| Horizontal Coarse Movement | 105mm |
| Horizontal Fine Movement | 15mm |
| Vertical Movement | 30mm |
| Fixation Light Source | Red LED on Flexible Arm |
| Large Patient Chin Rest | Not standard (option only) |
| Chinrest Elevation | 85mm |
Description
The Marco M2 Ultra Slit Lamp features 3-power galilean optics (10x, 16x, and 25x), single-element LED illumination, integrated background illumination, and a cable-free design.
